Tiva C LaunchPad Base Plate, Easy Wiring

A week ago went back to to Tiva C launchPad, this time I am interested in to refresh some concepts and try examples of RTOS (Real Time Operating System). The use of a RTOS usually means several hardware peripherals (sensors, keypads, displays .. etc). A breadboard and many jumpers was filling my imagination.

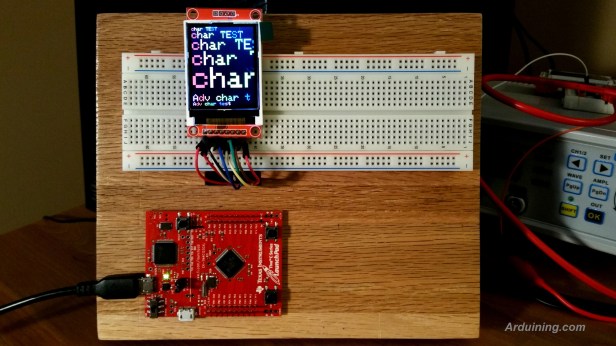

Tiva_Clean_Wiring

I need a Base Plate to organize the wiring, also a way of use top and bottom connectors in the launchPad. This is the story of last two days…

First thing, I need to finish the assembly of a tablesaw from Grizzly (it was resting semi-assembled in the garage).


Note:This project will be done in a couple of hours using acrylic plastic  if you have access to a laser cutter, in my case I am fan of woodworking… (the laser will come some day…).


A serie of images will explain the project…

TivaC_BasePlate_3

While dried, we need a pin reference for the bottom:

TivaC_Launchpad_Bottom_pin_ref

TivaC_bottom_01

Time to put all together…

TivaC_BasePlate_2

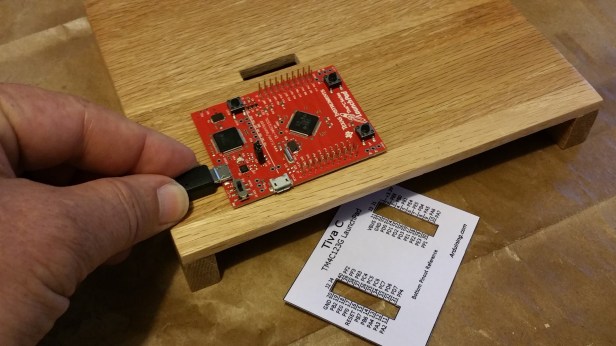

TivaC_BasePlate_1

Tiva_Clean_Wiring_3

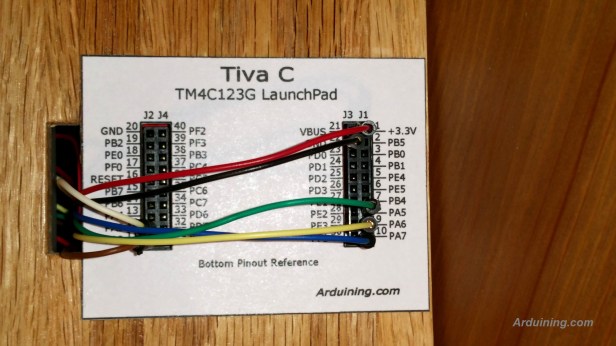

Here is how looks the wiring of the TFT Display:

Tiva-Clear_Wiring_2

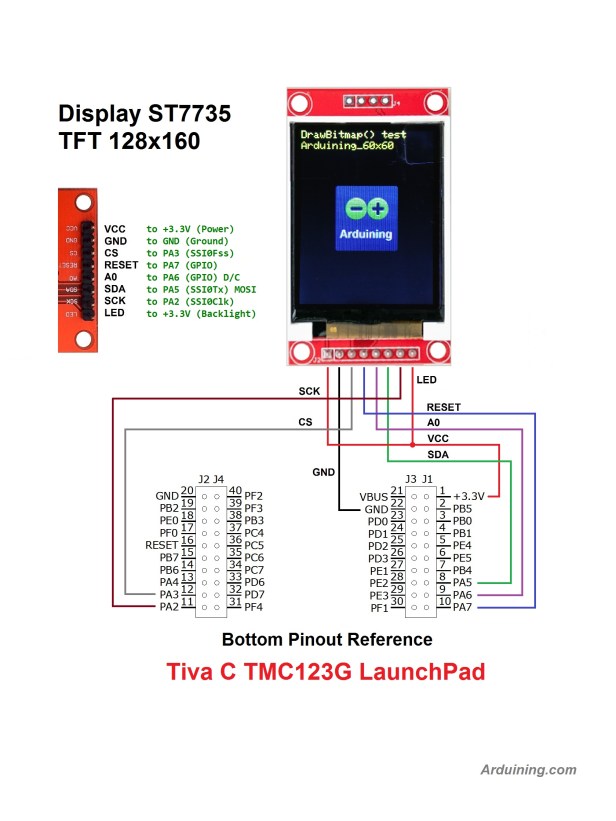

This is the wiring diagram of the ST7735 used:

TIVA_ST7735_Wiring_

… thanks for visiting.
