Diagrams

Adafruit’s METRO MINI (Arduino UNO compatible) Quick reference:

METRO_MINI_Ref




ATtiny104 Xplained NANO Development Kit, another pinout Diagram:

ATtiny104_Pinout_03

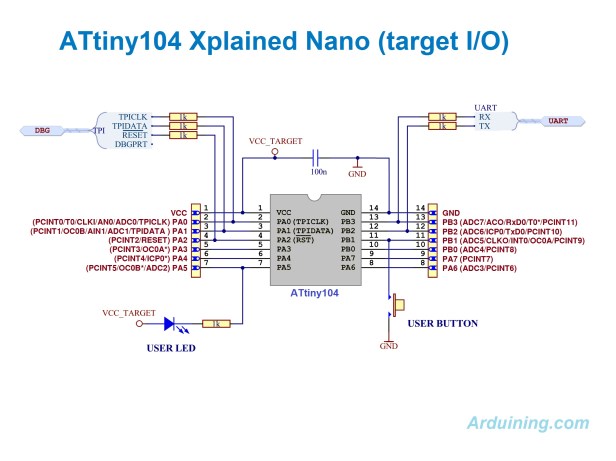

Pinout Diagram for the ATiny104 Xplained Nano.



ATtiny104_IO







Wiring Diagram to program the ESP-07 (ESP8266 ) and experiment with the Deep Sleep function:

DeepS_wiring



Notes:

The power led must be removed to reduce power during the sleep mode.

An internal timer is used to wake the ESP-07 generating a reset pulse in the GPIO16 output.

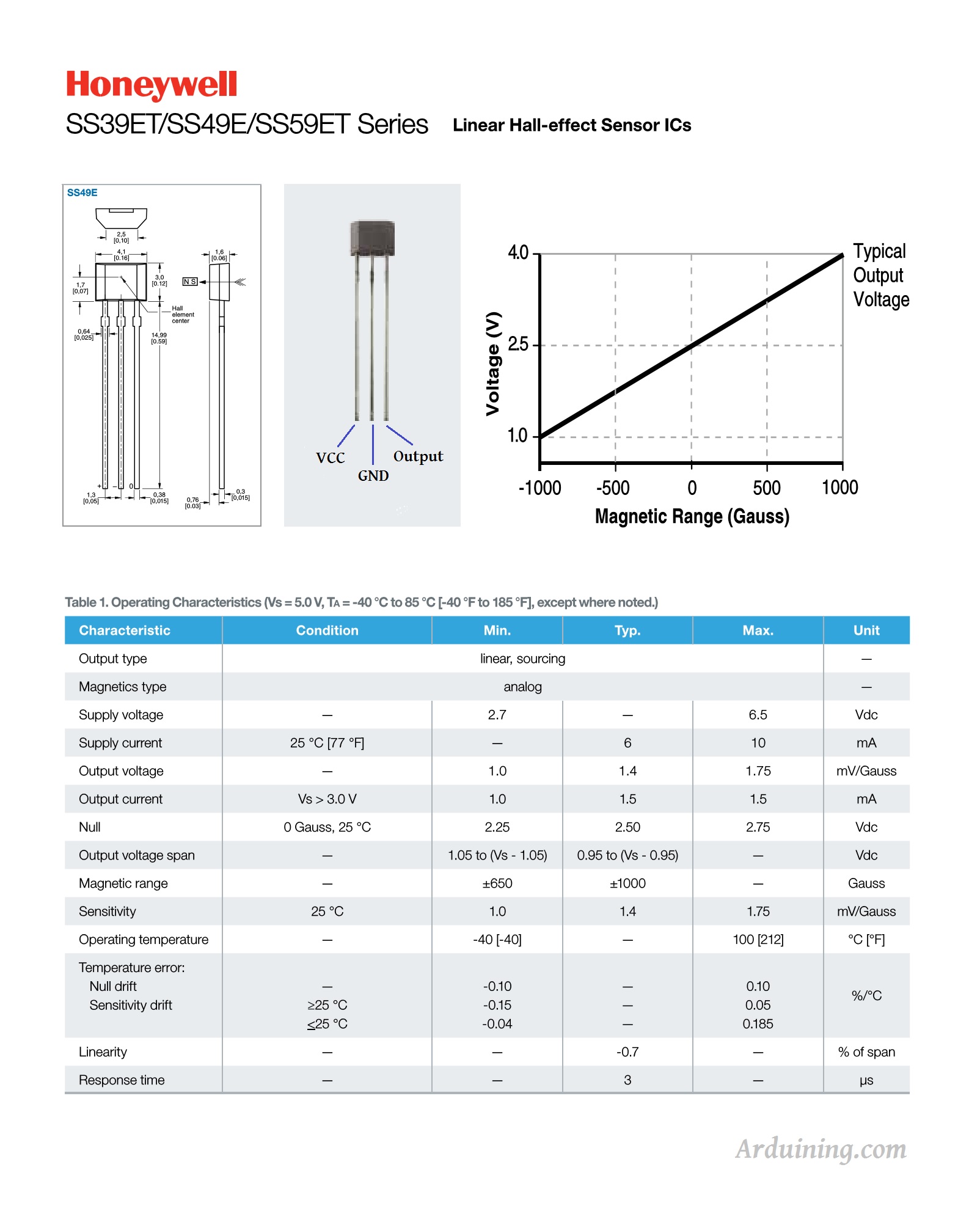

Quick reference for the Honeywell  Linear Hall-effect Sensor SS39E :



SS39E_QuickRef

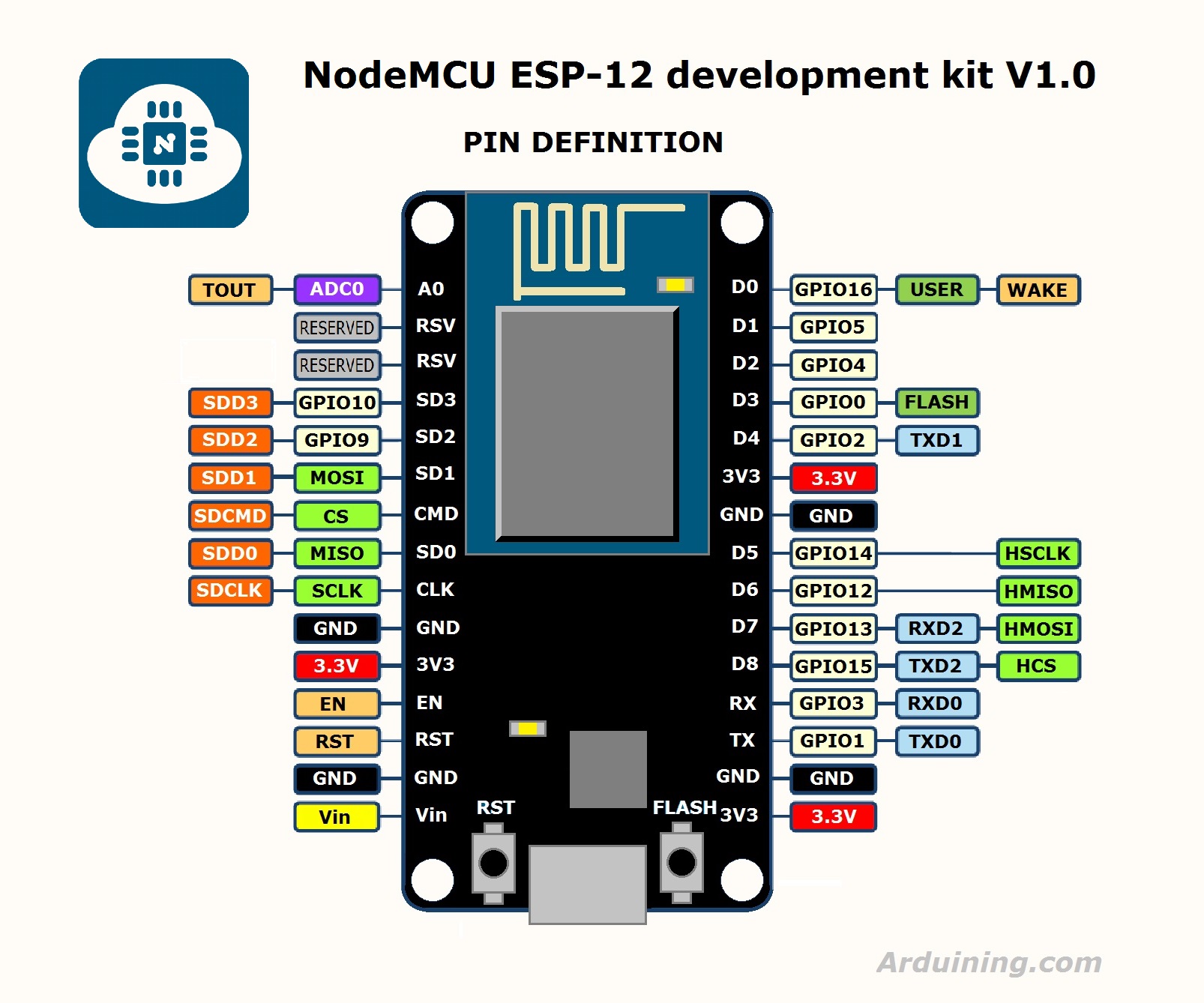

NodeMCU development Kit  V1.0  Pin Diagram (just an Arduining’s makeup):

NodeMcuDevkit_v1.0_io

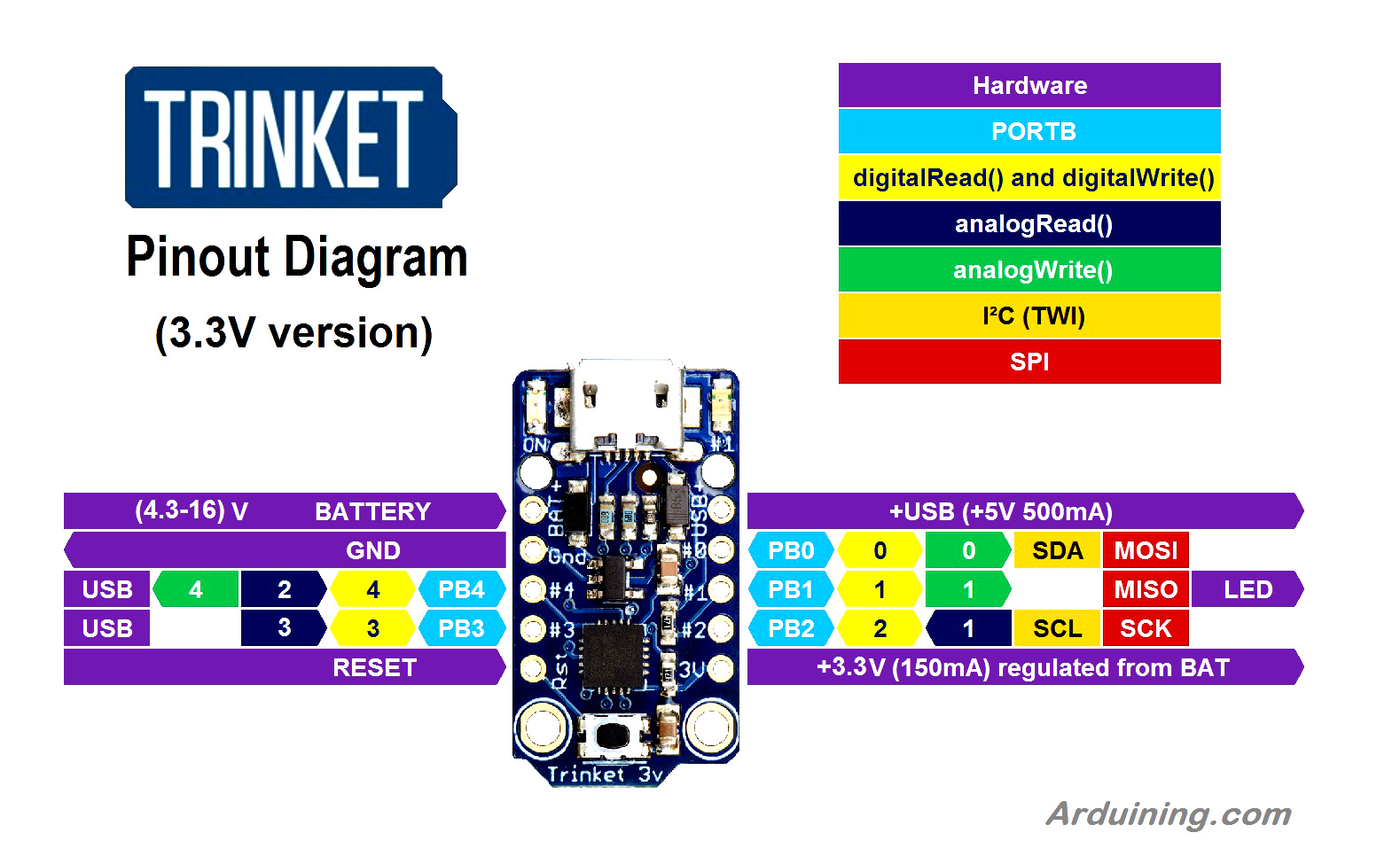

My little ref to wire the new 3.3V TRINKET with Micro-USB:

Trinket_3V_MicroUSB

Texas Instruments Tiva C Launchpad, Energia Pinout Diagram:

Tiva_C_Launchpad_Pinout_001b


Adafruit’s Pro Trinket Pinout Diagram (5V version)

Pro_Trinket_pins_01


Adafruit’s  Trinket Pinout Diagram (5V version)

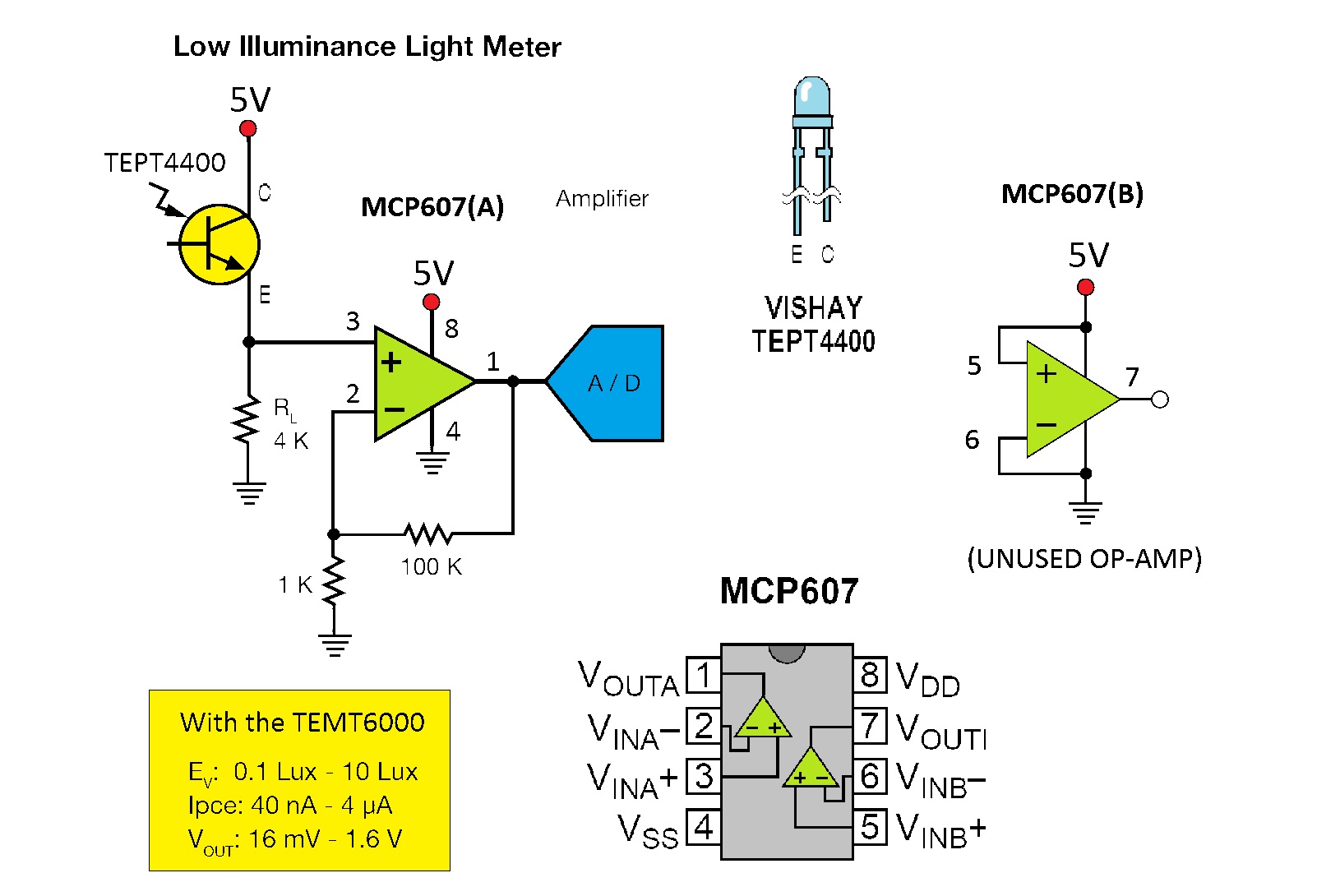

Low Illuminance Light Meter:

low-luminance-color

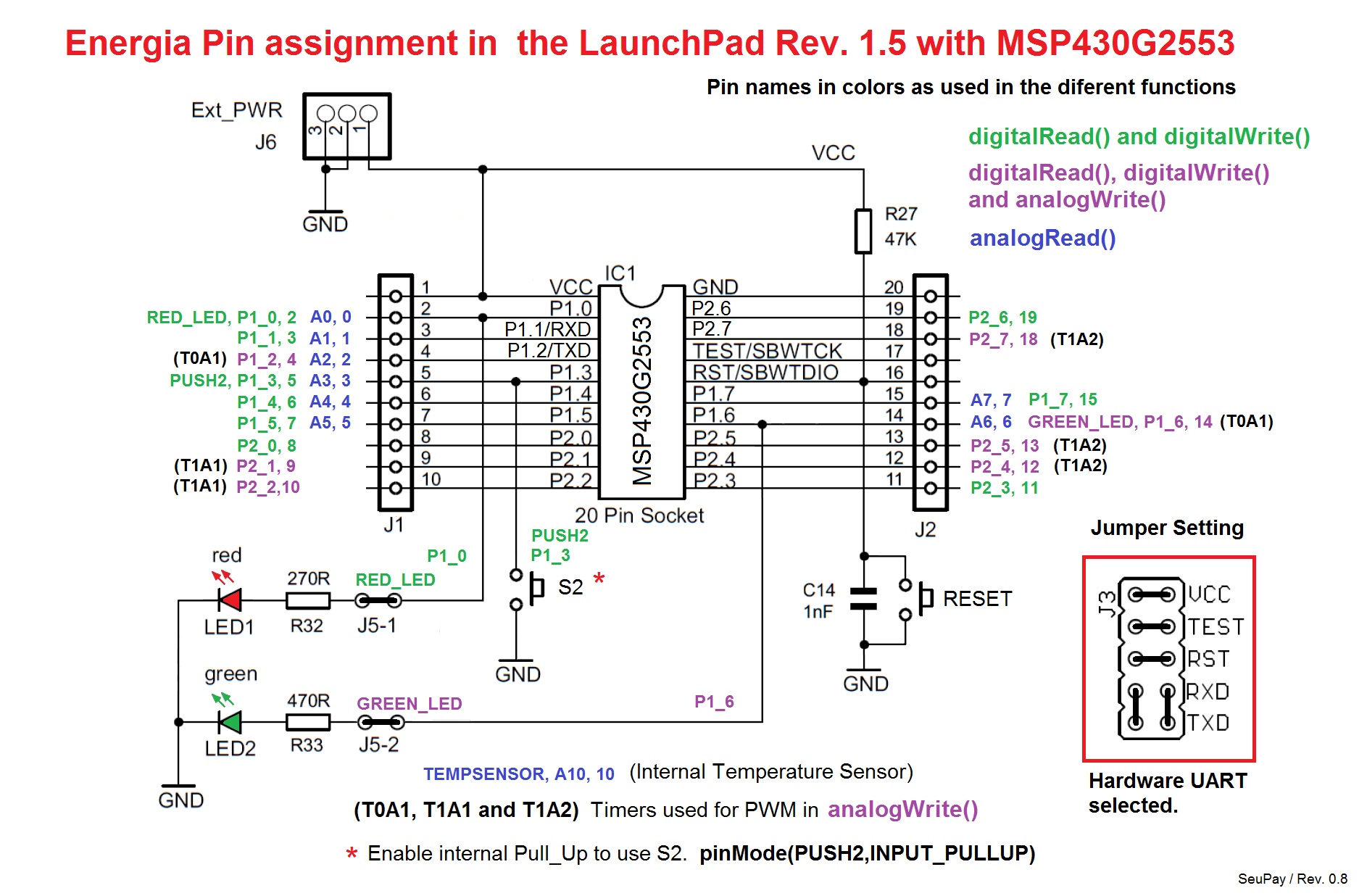

Here is where the colors sheme of many diagrams began:

http://forum.43oh.com/topic/2350-launchpad-pin-assignment/

LaunchPad Pin Assignment

Started by SeuPay, Jul 20 2012

post-36927-135135563821
