Serial bit banging with Arduino Trinket

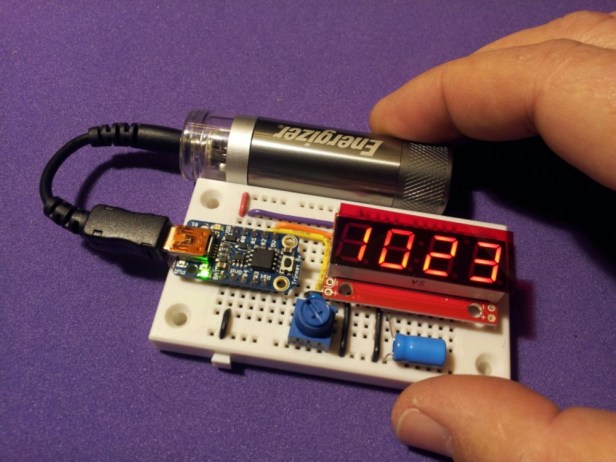

Serial transmission at 9600 bauds is possible with the Trinket ATtiny85 (5Volts, 8Mhz) from Adafruit.
The analog value (0~1023) presented at the analog pin 1 is serially transmited to the COM-11441 ( 7-segments Serial Display from Sparkfun).


The Sketch:

/* Pot_Display7_02.ino
   Arduining.com 20 JAN 2014
   Serial transmission at 9600 bauds using bit banging.(Trinket (5V, 8mhz).
   Analog 1 in presented in the 7-Segment Serial Display COM-11441 from Sparkfun.
   Using delayMicroseconds() for serial timming.
   BITTIME = 93 was adjusted experimentally.
*/

//----- defining some values:-------------------------------------------------
#define TXDATA  0       // Pin used to transmit data.
#define POT     1       // pin used to read the analog value.
#define BITTIME 93      // adjusted to obtain 104 milliseconds delay (9600bauds).

//----------variables:--------------------------------------------------------
  int potVal=0;
//============================================================================
void setup() {
  pinMode(TXDATA, OUTPUT);   // initialize the TXDATA pin as an output.
  digitalWrite(TXDATA,HIGH); // TXDATA = 5V when is resting.
  delay(10);                 //Wait for Serial Display startup.
  sendChar('v');             //Reset the display 0x76.
}

//----------------------------------------------------------------------------
void sendChar(char c){
  delayMicroseconds(BITTIME*2);          // wait 2 Stop bits before sending the char
  digitalWrite(TXDATA,LOW);              // low the line
  delayMicroseconds(BITTIME);            // wait Start bit
  for (int i=0; i<8;i++){
    digitalWrite(TXDATA,bitRead(c, i));  // bit out.
    delayMicroseconds(BITTIME);          // wait bit
  }
   digitalWrite(TXDATA,HIGH);            //Return TXDATA pin to "1".
}

//-------------------------------------------------------------------------
void show(String s){
  for(int i=0;i<4;i++){
    sendChar(s[i]);
  }
}

//=========================================================================
void loop() {
  potVal= analogRead(POT);
  String strPot = String (potVal);
  while(strPot.length()<4)strPot= " " + strPot;   //format to 4 characters.
  show(strPot);
  delay(100);
}

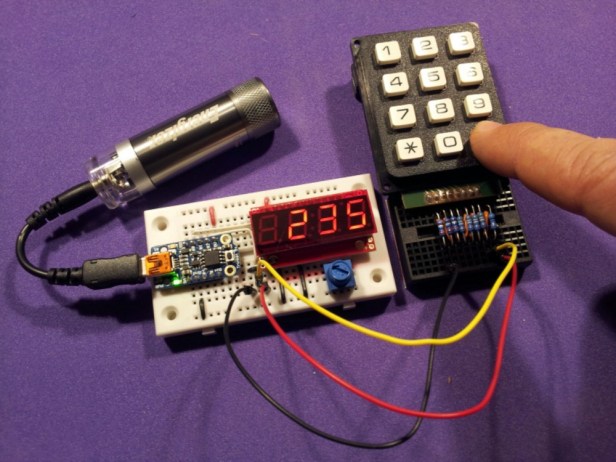

Then the potentiometer is replaced by a keypad 3×4 and some resistors.

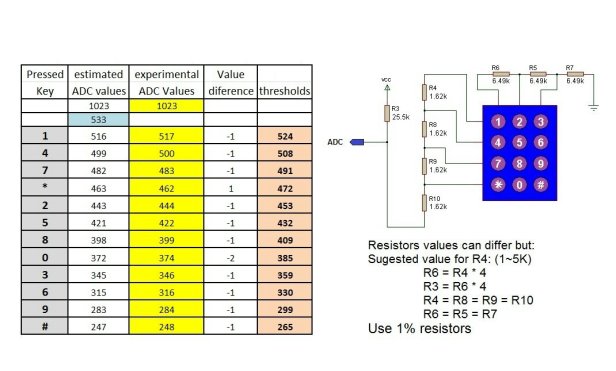

The resistor networw is designed to produce diferent voltage levels for each key pressed.


And this is the Sketch using the keypad:

/* AnalogKey_03.ino
   Arduining.com 23 JAN 2014
   Using an analog pin to read a 3x4 keypad and presenting the keyed data in the
   7-Segment Serial Display COM-11441 from Sparkfun.
   Notes:
     Implemented using the Arduino Trinket (5V, 8Mhz) from Adafruit.
     Serial transmission at 9600 bauds using bit banging.
     BITTIME delay was determined using an oscilloscope.
     1% resistors are used in the keypad (1.62k,6.49k and 25.5k)
*/

//----- defining some values:-------------------------------------------------
#define TXDATA    0         // Pin used to transmit data.
#define ADIN      1         // pin used to read the analog value.
#define BITTIME   93        // Adjusted experimentally to obtain 9600 bauds.
#define DEBOUNCE  5         // number of detections before key validation.

//----------variables:--------------------------------------------------------
  int lastkey= -1;          // No key.
  int key;                  // key value
  boolean released= true;   // No key pressed estatus.
  boolean  newline= true;   // flag to clean screen before new value entry.
  int validkey=0;           // used as debounce counter.
  int analog;               // value of the analog pin.
  char dispbuff[]= "-   ";
//============================================================================
void setup() {
  pinMode(TXDATA, OUTPUT);   // initialize the TXDATA pin as an output.
  digitalWrite(TXDATA,HIGH); // TXDATA = 5V when is resting.
  delay(10);                 //Wait for Serial Display startup.
  sendChar('v');             //Reset the display 0x76.
}

//----------------------------------------------------------------------------
void sendChar(char c){
  delayMicroseconds(BITTIME*2);          // wait 2 Stop bits.
  digitalWrite(TXDATA,LOW);              // TXDATA=0.
  delayMicroseconds(BITTIME);            // wait Start bit.
  for (int i=0; i<8;i++){
    digitalWrite(TXDATA,bitRead(c, i));  // bit out.
    delayMicroseconds(BITTIME);          // wait bit
  }
   digitalWrite(TXDATA,HIGH);            //TXDATA=1.
}

//--------------------------------------------------------------------------
void show(String s){
  for(int i=0;i<4;i++){
    sendChar(s[i]);
  }
}

//--------------------------------------------------------------------------
void checkey(){
  analog= analogRead(ADIN);
  key=-1;					        // no key pressed.
  if(analog<524) key=1;
  if(analog<508) key=4;
  if(analog<491) key=7;
  if(analog<472) key=10;	// '*' key
  if(analog<453) key=2;
  if(analog<432) key=5;
  if(analog<409) key=8;
  if(analog<385) key=0;
  if(analog<359) key=3;
  if(analog<330) key=6;
  if(analog<299) key=9;
  if(analog<265) key=11;	// '#' key

  if (key!=lastkey){
    validkey=0;
    lastkey=key;
   }
  validkey++;
  if(validkey > DEBOUNCE){
    validkey=0;
    if (key<0){
      released= true;
      return;
    }
    else if (released == true){
      released=false;
      return;
    }
  }
  key=-1;
}

//--------------------------------------------------------------------------
void clrbuff(){
  dispbuff[0]= '-';
  dispbuff[1]= ' ';
  dispbuff[2]= ' ';
  dispbuff[3]= ' ';
  newline= false;
}
//--------------------------------------------------------------------------
void action(){
  dispbuff[0]= 'd';
  dispbuff[1]= 'o';
  dispbuff[2]= 'n';
  dispbuff[3]= 'e';
  newline= true;
}

//==========================================================================
void loop() {
  show(dispbuff);     //Show content of the array dispbuff in the display
  checkey();
  if(key>=0){
    if(key==10) clrbuff();
    if(key==11) action();
    if(key<10){
     if (newline==true) clrbuff();
     dispbuff[0]= dispbuff[1];    //buffer shift (display shift to the left)
     dispbuff[1]= dispbuff[2];
     dispbuff[2]= dispbuff[3];
     dispbuff[3]=char(key+'0');
    }
  }
  delay(5);         // experimental, 5 works fine. (10 is to slow).
}

The video is in YouTube:
