Arduino Driving a Micro Stepper Motor

Small stepper motors are used to control pointer gauges in motor vehicles.

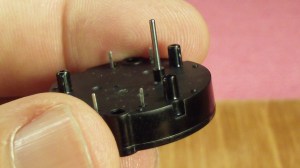

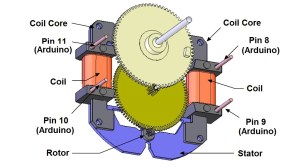

These motors are  small and can be driven directly by the Arduino due to low operation current (15-25mA per coil). They have  gearboxes to increase torque and reduce the mechanical step.

You can find them in Amazon searching for: stepper motor gauge

See it working in Youtube…

Here is the code:

/*------------------------------------------------------
Gauge_Pot01
Arduining.com 10 July 2011
Direct driving of Miniature Stepper Motor used as an indicator
drive for dashboard instrumentation.
Hardware:
-Arduino UNO.
-Potentiometer.

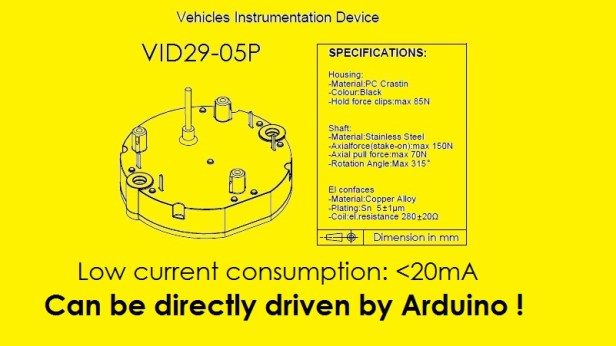

-Stepper Motor VID29-05P (Can be directly driven by MCU):
    -Low current consumption: <20mA
    -Rotation Angle:Max 315°
    -0.5°/full step
    -Coil resistance: 280 +/- 20Ω
 -----------------------------------------------------*/
#include <Stepper.h>
#define  STEPS  720    // steps per revolution (limited to 315°)
#define  COIL1  8
#define  COIL2  9
#define  COIL3  10
#define  COIL4  11

#define PotIn  0

// create an instance of the stepper class:
Stepper stepper(STEPS, COIL1, COIL2, COIL3, COIL4);

void setup(){
  stepper.setSpeed(30);    // set the motor speed to 30 RPM (360 PPS aprox.).
  stepper.step(630);       //Reset Position(630 steps counter-clockwise).
//  Serial.begin(9600);    //for debuging.
}
int pos=0;                 //Position in steps(0-630)= (0°-315°)

void loop(){
  int val = analogRead(PotIn);   //get the potentiometer value (range 0-1023)
  val= map(val,0,1023,0,630);    // map pot range in the stepper range.

  if(abs(val - pos)> 2){         //if diference is greater than 2 steps.
      if((val - pos)> 0){
          stepper.step(-1);      // move one step to the left.
          pos++;
          }
      if((val - pos)< 0){
          stepper.step(1);       // move one step to the right.
          pos--;
          }
      }
//  Serial.println(pos);      //for debuging...
//  Serial.println(val);
//  delay(100);
}
